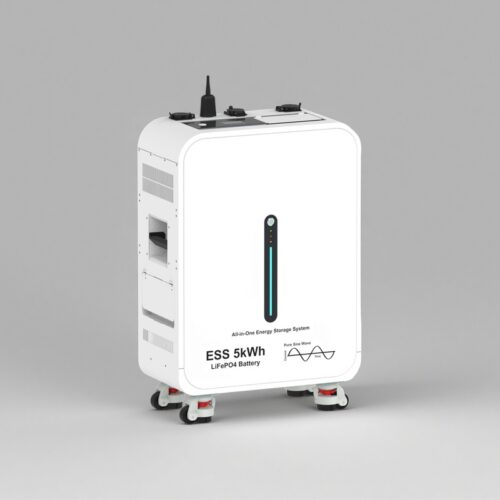

Centrale électrique domestique portable de 5 000 Wh – Blanche
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Description

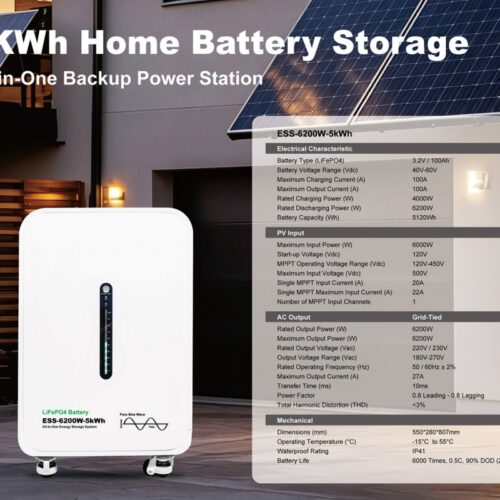

| Category | Parameter | Specification |
|---|---|---|
| Electrical Characteristic | Battery Type (LiFePO4) | 3.2V / 100Ah |
| Battery Voltage Range (Vdc) | 40V–60V | |
| Maximum Charging Current (A) | 100A | |
| Maximum Output Current (A) | 100A | |
| Rated Charging Power (W) | 4000W | |
| Rated Discharging Power (W) | 6200W | |
| Battery Capacity (Wh) | 5120Wh | |
| PV Input | Maximum Input Power (W) | 6000W |
| Start-up Voltage (Vdc) | 120V | |
| MPPT Operating Voltage Range (Vdc) | 120V–450V | |
| Maximum Input Voltage (Vdc) | 500V | |
| Single MPPT Input Current (A) | 20A | |
| Single MPPT Maximum Input Current (A) | 22A | |
| Number of MPPT Input Channels | 1 | |
| AC Output (Grid-Tied) | Rated Output Power (W) | 6200W |
| Maximum Output Power (W) | 6200W | |
| Rated Output Voltage (Vac) | 220V / 230V | |
| Output Voltage Range (Vac) | 180V–270V | |
| Rated Operating Frequency (Hz) | 50 / 60Hz ± 2% | |
| Maximum Output Current (A) | 27A | |
| Transfer Time (ms) | 10ms | |
| Power Factor | 0.8 Leading – 0.8 Lagging | |
| Total Harmonic Distortion (THD) | < 3% | |
| Mechanical | Dimensions (mm) | 550 × 280 × 807mm |
| Operating Temperature (°C) | -15°C to 55°C | |
| Waterproof Rating | IP41 | |
| Battery Life | 6000 Cycles, 0.5C, 90% DOD |
