محطة طاقة «سمارت ديسبلاي» بسعة 750 واط/ساعة، بقدرة خرج تبلغ 500 واط
اطلب عرض أسعار
أدخل الكمية التي تحتاجها وأضفها إلى قائمة عروض الأسعار الخاصة بك للاستفسار عن الأسعار.
الوصف
| فئة المعلمة | عنصر المعلمة | المواصفات |
|---|---|---|
| معلومات أساسية | اسم المنتج | Portable Energy Storage Power Supply 500W |
| معلومات أساسية | الطراز | ECOH PowerBank 500 |
| معلومات أساسية | Color | Blue / Orange / Black (Multi-color Optional) |
| معلمات البطارية | Battery Capacity | 750Wh (approx. 202000mAh @3.7V) |
| معلمات البطارية | نوع الخلية | Lithium Iron Phosphate (LiFePO₄) |
| معلمات البطارية | دورة الحياة | ≥3000 cycles (80% DoD) |
| معلمات البطارية | Battery Management System | BMS Intelligent Protection |
| AC Output | Rated Power | 500W |
| AC Output | Peak Power | 1000W |
| AC Output | Output Voltage | 220V ~ 50Hz |
| AC Output | Output Waveform | Pure Sine Wave |
| AC Output | AC Socket Quantity | 2× Universal AC Sockets |
| DC Output | DC Round Port Output | 12V/10A (Max 120W) |
| DC Output | Cigarette Lighter Port Output | 12V/10A (Max 120W) |
| USB Output | USB-A ×1 (QC3.0 Fast Charge) | 5V⎓3A, 9V⎓2A, 12V⎓1.5A (Max 18W) |
| USB Output | USB-A ×1 (Standard) | 5V⎓2A (Max 10W) |
| USB Output | USB-C (PD Fast Charge) | 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A (Max 60W) |
| Charging Input | DC Charging Input | 12V/5A (Round Charging Port) |
| Charging Input | AC Mains Charging | Fully Charged in Approx. 6–7 Hours |
| Charging Input | Car Charger (12V) | Fully Charged in Approx. 10–12 Hours |
| Charging Input | Solar Charging | Supported (Solar Panel Required Separately) |

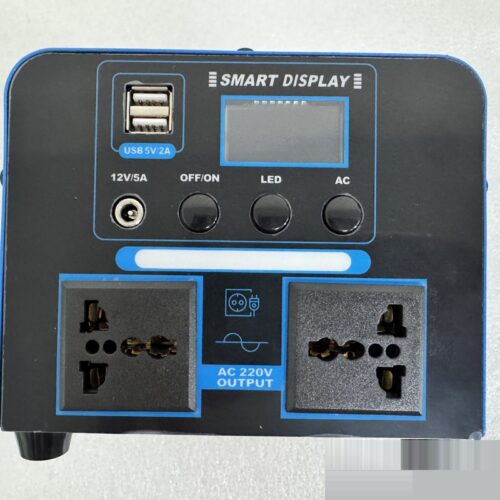

| Display & Control | Display Screen | SMART DISPLAY Microcomputer Intelligent Display (Battery Percentage/Voltage/Power) |
| Display & Control | Battery Level Indicator | 4-Segment Battery Icon + Digital Percentage |
| Display & Control | Control Buttons | ON/OFF / LED / USB / DC / AC |
| Certification & Warranty | Certification Sticker | Ping An Insurance Underwritten / 10-Year Warranty 5-Year Replacement / National Inspection Certified |
| Certification & Warranty | Safety Certification | CE / FCC / UN38.3 / MSDS / RoHS |
| وظائف الحماية | الحماية من الشحن الزائد | ✅ |
| وظائف الحماية | الحماية من التفريغ الزائد | ✅ |
| وظائف الحماية | الحماية من التيار الزائد | ✅ |
| وظائف الحماية | الحماية من الدائرة القصيرة | ✅ |
| وظائف الحماية | Over-temperature Protection | ✅ |
| وظائف الحماية | Reverse Polarity Protection | ✅ (Smart Clip) |
| Physical Parameters | Dimensions (Approx.) | 270 × 180 × 210 mm |
| Physical Parameters | Weight (Approx.) | 7.8 kg |
| Operating Environment | Charging Temperature | 0°C ~ 45°C |
| Operating Environment | Discharging Temperature | -10°C ~ 55°C |
| Operating Environment | Storage Temperature | -20°C ~ 45°C |
| Typical Usage Duration Reference | Smartphone (10W) | 10W, ~63h |
| Typical Usage Duration Reference | Tablet (20W) | 20W, ~31.5h |
| Typical Usage Duration Reference | Laptop (65W) | 65W, ~9.8h |
| Typical Usage Duration Reference | LED Light (10W) | 10W, ~63h |
| Typical Usage Duration Reference | Car Refrigerator (60W) | 60W, ~10.5h |
| Typical Usage Duration Reference | Fan (40W) | 40W, ~16h |
| Typical Usage Duration Reference | 32-inch TV (80W) | 80W, ~8h |
| Typical Usage Duration Reference | Car Emergency Jump Start | —, Can Start Approx. 20 Times |
